Description and Importance of ISP Pinout in Mobile Repair Using Tools like UFI, Easy J-Tag, Mipi Tester, Medusa Pro, UMT ISP, Miracle ISP, Hydra, etc.

Description:

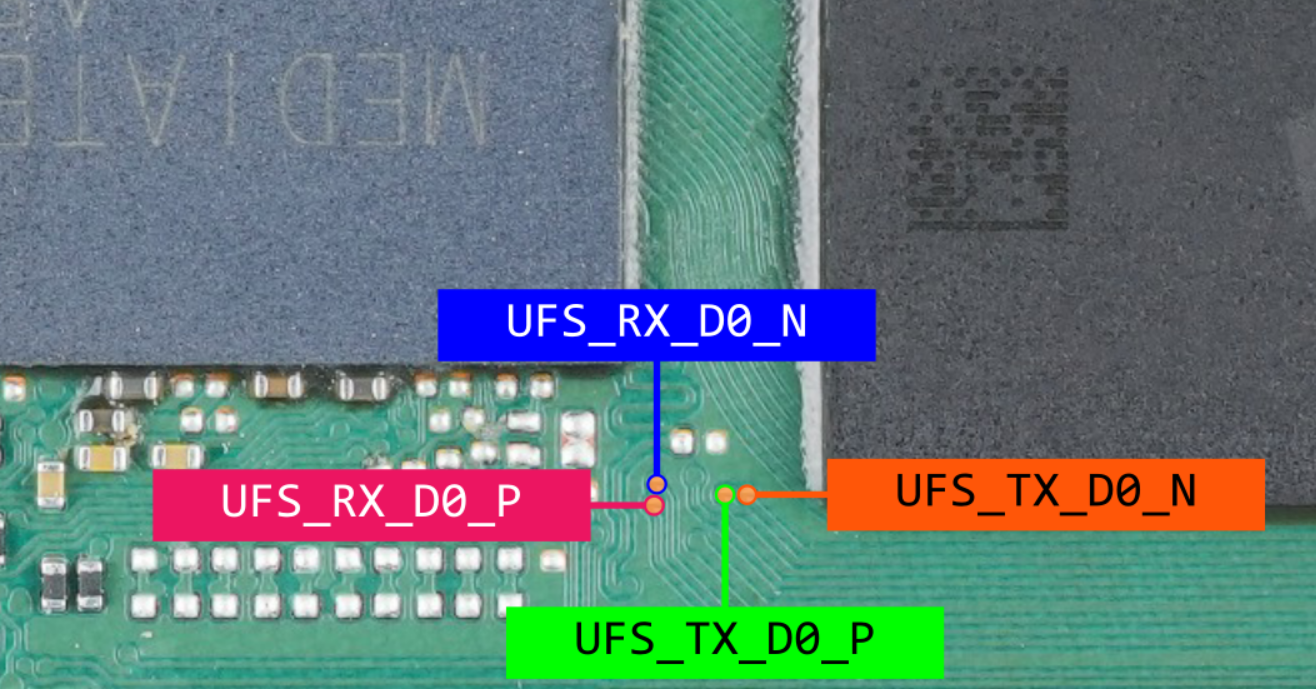

ISP (In-System Programming) pinout in mobile repair is a crucial technique that involves accessing the internal memory of a mobile device directly through its motherboard. This method is used by professional technicians and repair experts when standard software methods are unable to recover or repair a mobile device. The ISP pinout refers to specific test points or pins on a mobile device’s PCB (Printed Circuit Board) that are used to establish a direct connection to the memory chip.

Various tools and hardware interfaces, such as UFI, Easy J-Tag, Mipi Tester, Medusa Pro, UMT ISP, Miracle ISP, Hydra, and others, are employed to carry out this process efficiently. These tools are equipped with the necessary features to read, write, and manipulate the data stored in the device’s memory, providing an alternative way to repair, unlock, or recover a mobile device. The ISP pinout is often used when the device is in a bootloop, bricked, locked, or suffering from hardware-related issues.

Importance:

1. Data Recovery: ISP pinout is instrumental in data recovery from mobile devices with inaccessible or corrupted operating systems. It allows technicians to extract essential user data like contacts, messages, photos, and more.

2. Brick Repair: In cases where a mobile device is “bricked” due to a failed software update or corruption, ISP pinout enables reprogramming of the memory chip, restoring the device to a functional state.

3. Bootloop Repair: When a mobile device is stuck in a bootloop (repeatedly restarting), accessing the ISP pinout helps resolve software and firmware issues by directly manipulating memory data.

4. Unlocking and Bypassing Security: ISP pinout is often used to bypass device security, unlock bootloader, or reset PIN/Pattern/Password locks when traditional methods are not effective.

5. Flashing Firmware: When a device’s firmware is corrupted or damaged, the ISP pinout is used to flash a clean firmware onto the memory chip, effectively repairing the device.

6. Advanced Troubleshooting: For complex hardware issues, technicians use ISP pinout to diagnose problems with individual components or connections on the PCB, facilitating accurate and efficient repair.

7. Cost-Effective Repairs: ISP pinout allows technicians to repair devices that might otherwise be considered beyond repair, reducing the need for costly replacements.

8. Customization and Modification: Mobile enthusiasts and technicians use ISP pinout to perform custom firmware modifications, overclocking, and other advanced operations on their devices.

In conclusion, the ISP pinout is a valuable tool in mobile device repair and data recovery. It offers a direct pathway to the device’s memory, enabling technicians to tackle a wide range of software and hardware issues. When used in conjunction with specialized tools like UFI, Easy J-Tag, Mipi Tester, Medusa Pro, UMT ISP, Miracle ISP, and Hydra, it ensures the efficient and effective repair of mobile devices.
